3D Machine Vision System
System
3D Machine Vision System
3D Robot Vision provides 3D vision solutions to robots and supports various tasks such as detection, bin picking, and palletizing in industrial automation. Enhance precision with a user-friendly platform and convenient hardware.
System Line-up
Products by type

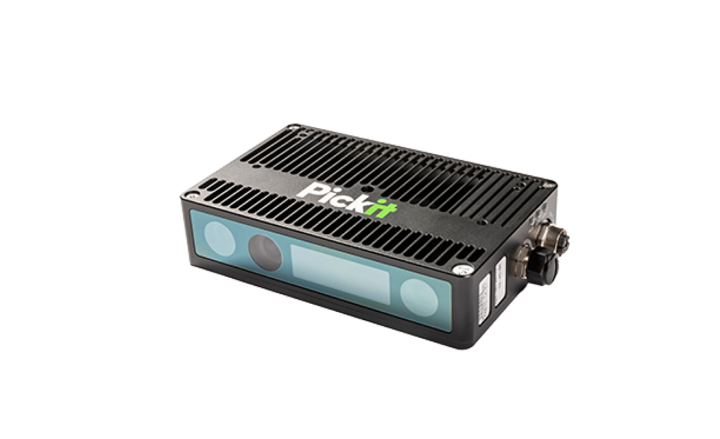

SD2 is a 3D vision system designed to precisely detect small objects.
It provides high-resolution scanning, making it suitable for recognizing small components or intricate shapes.
Specifications
Please swipe horizontally
to check the contents.
| Camera | SD2 |
|---|---|
| 3D measurement method | Active Stereo |
| 3D image capturing time | 400 ms |
| 3D camera resolution (pixels) | 1280x960 |
| 3D camera precision (mm) | 4 - 10 mm |
| Estimated picking accuracy | 1.5 x 3D camera accuracy |
| (Optimal) working distance | 800 ~ 2000 mm |
| 3D camera weight | 0.62kg |
| Power supply | IEEE802.3atPoE |
| Temperature | 10°C ~ 50°C |
| IP rating | IP65 |
| Conforms to | CE, RoHS, FCC |

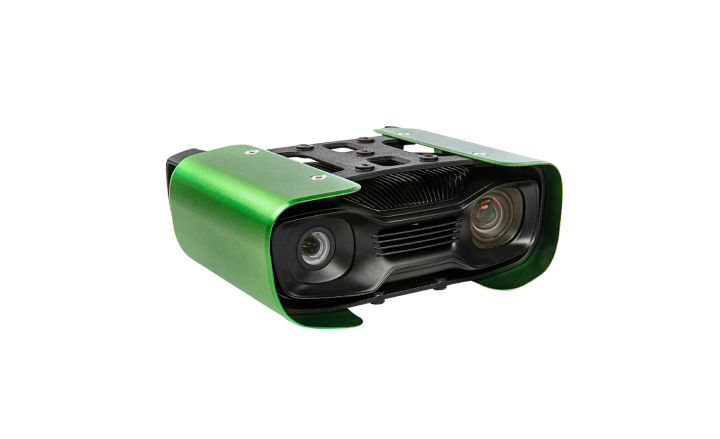

M-HD2 is a model capable of scanning medium-sized objects with high resolution.
It is optimized for detecting medium-sized components and can be used in various industrial environments.
Specifications
Please swipe horizontally
to check the contents.
| Camera | M70 | M60 | C610 |
|---|---|---|---|
| 3D measurement method | Structured light | Structured light | Laser Triangulation |
| 3D image capturing time | 200 ms | 200 ms | 400 ms |
| 3D camera resolution (pixels) | 1944 x 1200(2.3MP) | 2448 x 2048(5MP) | 2448 x 2064 |
| 3D camera precision (mm) | 1 - 2 mm | 1 - 2 mm | 1 - 2 mm |
| Estimated picking accuracy | 1.5 x 3D camera accuracy | 1.5 x 3D camera accuracy | 1.5 x 3D camera accuracy |
| (Optimal) working distance | 500 ~ 1100 mm | 300 ~ 1100 mm | 800 ~ 1350 mm |
| Field of view | 735 x 448 mm @ 0.7 m | 570 x 460mm @ 0.6m | 640 x 530mm @ WD |
| 3D camera weight | 1kg | 1kg | 2.3kg |
| Power supply | M12-5 24VDC | M12-5 24VDC | 24V CC 2A max |
| Temperature | 0°C ~ 40°C | 0°C ~ 40°C | 0°C ~ 40°C |
| IP rating | IP65 | IP65 | IP65 |
| Conforms to | CE, CB, EN62368, FCC class B | CE, CB, EN62368, FCC class B | CE, RoHS, FCC |

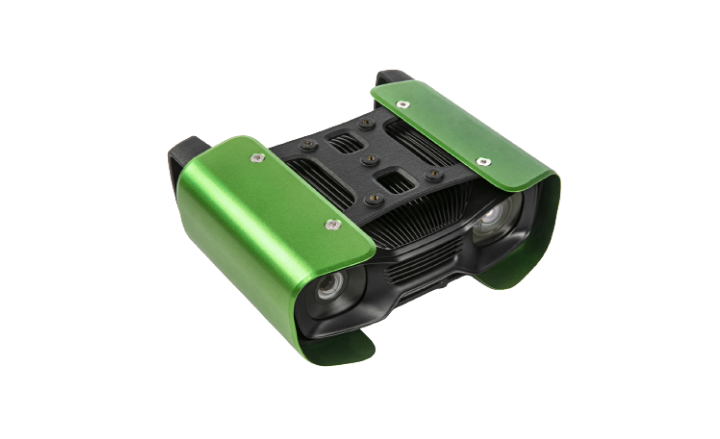

L-HD2 is a high-resolution 3D vision system designed to detect large objects.
It offers a wide field of view while maintaining high precision.
Specifications
Please swipe horizontally
to check the contents.
| Camera | M130 | C1200 |
|---|---|---|
| 3D measurement method | Structured light | Laser Triangulation |
| 3D image capturing time | 200 ms | 400 ms |
| 3D camera resolution (pixels) | 2448 x 2048(5MP) | 2448 x 2064 |
| 3D camera precision (mm) | 2 - 6 mm | 2 - 4 mm |
| Estimated picking accuracy | 1.5 x 3D camera accuracy | 1.5 x 3D camera accuracy |
| (Optimal) working distance | 800 ~ 2700 mm | 1600 ~ 2650 mm |
| Field of view | 790 x 650 mm @ 1.3m | 1250 x 1050 mm @ WD |
| 3D camera weight | 1kg | 5kg |
| Power supply | M12-5 24VDC | 24V CC 2A max |
| Temperature | 0°C ~ 40°C | 0°C ~ 40°C |
| IP rating | IP65 | IP65 |
| Conforms to | CE, CB, EN62368, FCC class B | CE, RoHS, FCC |

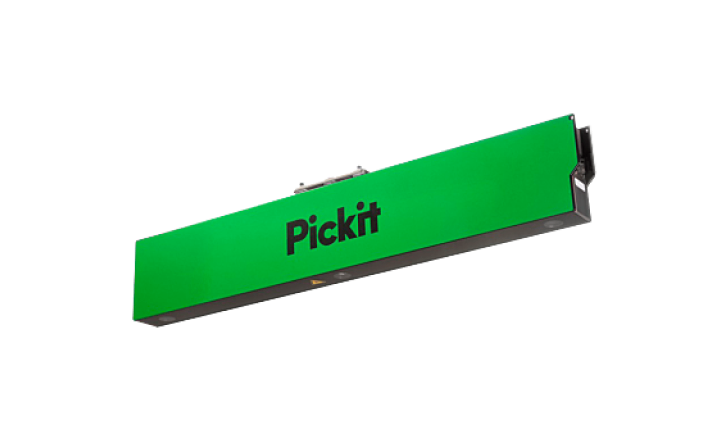

XL-HD2 is the model that provides the widest field of view and highest resolution, capable of detecting very large objects.
It is optimized for logistics and large-scale manufacturing industries.
Specifications
Please swipe horizontally
to check the contents.
| Camera | C1600 |
|---|---|
| 3D measurement method | Laser Triangulation |
| 3D image capturing time | 400 ms |
| 3D camera resolution (pixels) | 2448 x 2064 |
| 3D camera precision (mm) | 2 - 4 mm |
| Estimated picking accuracy | 1.5 x 3D camera accuracy |
| (Optimal) working distance | 2040 ~ 3240 mm |
| Field of view | 1600 x 1300 mm @ WD |
| 3D camera weight | 6.3kg |
| Power supply | 24V CC 2A max |
| Temperature | 0°C ~ 40°C |
| IP rating | IP65 |
| Conforms to | CE, RoHS, FCC |
